PNEUMATIC TOOL LUBRICATORS
for any type of "Non-Stop" equipment operation.

Behind our large stock are factory-trained PNEUMATIC SPECIALISTS ready
to be of assistance.

Pressure-Feed Pneumatic Tool LubricatorASL
Pressure-Feed Pneumatic Tool Lubricator

The Pressure Feed and Constant Feed are designed to work with heavy stress conditions
and climates.

Easy Installation to any airline, hose. portable
or stationary air compressor and air tool.

Interchangeable Parts except for the body
casting. Porting available in U. S. pipe.  BSP
or BSPT threads.

Also available with a new manual relieving
safety filler cap.

1/6 pint  No.  5-PF         (1/2" NPT)
1/3 pint  No. 10-PF       (3/4" NPT)
1/2 pint  No. 15-PFM   ( 3/4 NPT)
1/2 pin   No. 15-SPFM (1" NPT)
1/2 pint  No. 30-PFM   (1"NPT)

Constant-Feed Pneumatic Tool LubricatorASL
Constant-Feed Pneumatic Tool Lubricator

The Constant-Feed lubricator is designed
to work with heavy oils to provide continuous
lubrication for mining and construction tools
under heavy stress.

Ideal Lubrication from a continuous even fog
of oil as long as the reservoir has oil.

Refilling is easy with the standard manual
relieving safety filler cap/  A second safety relief
is also included.  Relieve pressure by pressing
the red cap. Check the oil level by looking into
the pressure proof window.

1/3 pint  No. 10-CFM     (3/4" NPT)
1/2 pint  No. 15-CFM     (3/4" NPT)
1/2 pint  No. 15-SCFM   (3/4" NPT)
   1 pint  No. 30-CFM     (1" NPT only)

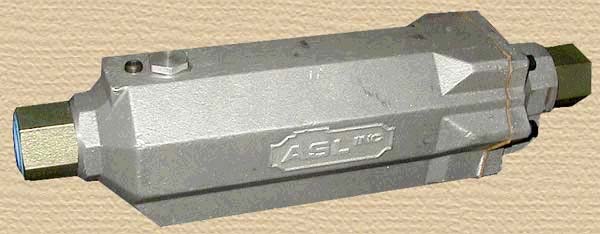

Model 50 Constant-Feed Automatic AirTool LubricatorModel 50 Constant-Feed
Automatic AirTool Lubricator



The ASL Model 50 operates in any position,
fully automatic, will close down the air supply to
the air tool when the lubricator is out of oil.

The ASL lubricator will increase the life of your air tool equipment. It's fully adjustable for light and heavy rock drill oils.

The Model 50 Lubricator can be adjusted while
operating without effecting air flow.  when
servicing, no special tools are required.



1 quart   No. 50-SCFM  ( 1" NPT)

AUTOMATIC SHUT-DOWN or WARNING SYSTEMHeavy duty Tool Lubricator with AUTOMATIC
SHUT-DOWN

or WARNING SYSTEM



Automatic Shut-Down System
The Automatic Shut-Down System will stop
the flow of the air through the lubricator when
the unit is out of oil.  Refill the lubricator and the
unit automatically resumes operation.

Warning Light System
The Warning Light will not shut-down the system (this is only a warning light or the
optional sound alarm).
Refill the lubricator and the warning light or sound alarm will stop and operation automatically resumes.

2 quart  No. 120-CFM    (1-1/4", 1-1/2" NPT)
1 Gal.    No. 230-CFM   (2", 2-1/2" NPT)
3 Gal.    No. 690-CFM   (2-1/2" NPT)

ASL Constant-Feed Rock Drill FeedASL Constant-Feed
Rock Drill Feed





"Quality" Constant-Feed for "nonstop" OperationQuality" Constant-Feed
for "nonstop" Operation
H
eavy duty tool operation for
mining equipment. The ASL
Lubricator for all climates and
conditions.



It is immediately effective once installed and
pressurized.  The lubricator is supplied with a
large external liquid level gage and external
feeder adjustment assemblies, which are standard
with the 690 series lubricators.



* MAX PRESSURE 500 PSIG
* EXTERNAL FEEDER ADJUSTMENT
* LIQUID LEVEL GAUGE
* SAFETY RELIEVING FILLER  CAP

1 1/2 pint No. 40-CFM    (1/4", 1/2" NPT)
   1 quart  No. 60-CFM    (1-1/4",1-1/2" NPT)
   2 quart  No. 120-CFM (1-1/4", 1-1/2" NPT)                    230-CFM       (2",2-1/2" NPT)  1 Gal.
   3 Gal.   No. 690-3-CF-M  (2-1/2", 3" NPT)
   9 Gal.   No. 690-9-CF-M  (2-1/2", 3" NPT)                                       12 Gal. No. 690-12-CF-M (2-1/2" 3" NPT

Pneumatic Lubricator Accessories Dirt StopperPneumatic Lubricator
Accessories Dirt Stopper





DIRT STOPPER
stops contamination

Pneumatic tools require filtration and lubrication.
Many times the air hose couplings are
disconnected and dropped in the dirt.  They are
usually never cleaned before they are
reconnected.  Well, there goes the investment
of your equipment.  Consider how much you
could save with the simple addition of the ASL
DIRT STOPPER between the coupling and the
inline lubricator on the air tool side of the leg.

No. D-1    1" NPT
No. D-1 3/4" NPT
No. D-1 1/2" NPT

ALSO IN 1/2" 3/4" 1" BSP, BSPT



Cleaning  It is not required that the dirt stopper
be dis-assembled for the cleaning.  the assembly
can be cleaned in a solvent or in soapy water,
then back flushed with air to remove
contaminants, if required.

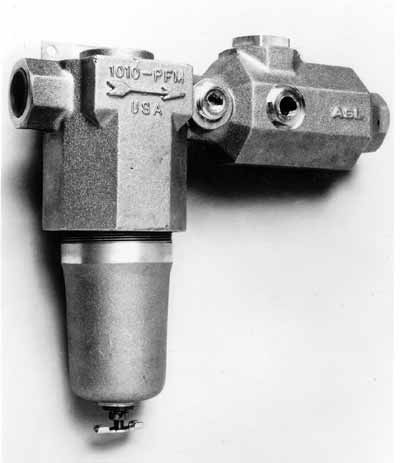

ASL Filter-Lubricator with or without AUTOMATIC DRAINASL Filter-Lubricator with
or without AUTOMATIC
DRAIN





High Efficiency Depth Filtration.
Interchangeable Parts
*
Parts on all models or the "Pressure Feed"
and "Constant-Feed" Lubricators are
interchangeable with the exception of the
body casting.

* Porting is available in U. S. Pipe BSP or BSPT
threads.



Standard Features
* Filter with aluminum bowl.
* Sight Window on both sides.
* (1) lubricated 3/4" NPT port and
   (2) 1/2" NPT non-lubricated ports.
* Reversible mounting brackets
* Filler cap

Fully Automatic and Dependable
Reducers for the smaller pipe sizes may be used for this model without harmful effect.

1/3 pint No. 1010-F-PF (3/4" NPT)
    with No. B00073 standard Filler Cap
    Assembly

Air Tool Work StationAir Tool Work Station





The WORK STATION is a "MUST" for
all JOB SITES and CONDITIONS

MANIFOLDS CAN BE INSTALLED IN SERIES

MANIFOLDS CAN BE INSTALLED
IN SERIES

The Extractor Dryer provides you with 100% of
moisture and contaminants removed from the
system in the proper way.

The WORK STATION is designed primarily
for the final usage of your air system, or as close
to the end use as possible.

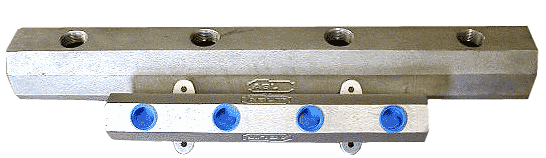

ManifoldsManifolds





   3/4" inlet (4) 1/4" ports
   3/4" inlet (4) 3/8" ports
   3/4" inlet (4) 1/2" ports
   3/4" inlet (4) 3/4" ports
      1" inlet (4) 3/4" ports
   1 1/4" inlet (4) 1" ports

Special
   2" inlet (4) 1" ports

The right place to do the right job!
In return you receive -
* Extended tool life
* Reduced down time
* Valuable savings on costly repairs to air tools.

Not all the items and sizes we offer are shown
please contact us for further product and order information.

For more information or to place an order contact us by phone, fax
or email us at: asl-inc@asl-inc.net
